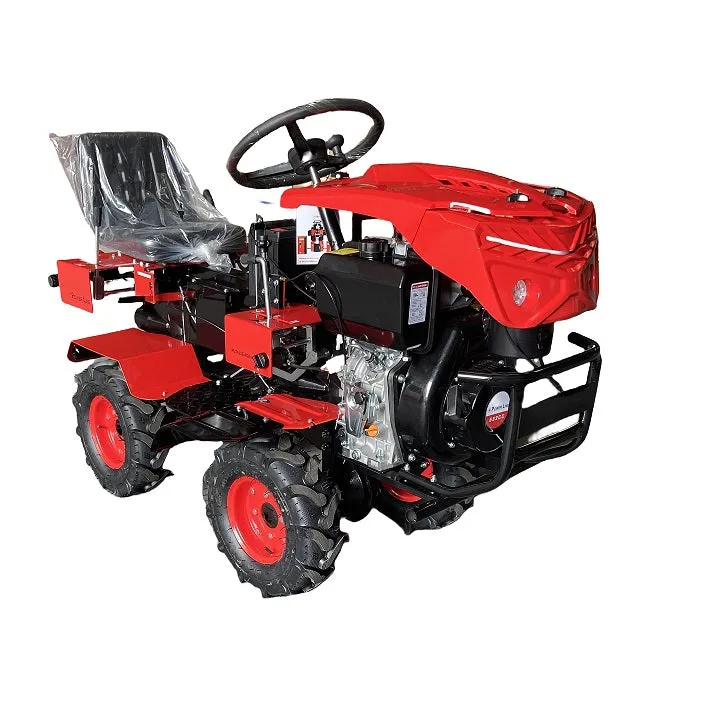

4-Wheel Drive Tiller Elec. Start, Including:
-192 Diesel Engine, power 9.2 KW,14HP
-1x Ditcher
-4x Tilling Sets
-2x Iron Crawling Wheels
Tiller Specs:
Tilling Depth: 150-300mm
Tiller Breadth: 1350mm
3 Fwd Gear both front and back and 1 Rev
Speed:3/0/2/-R/1 (145/0/83/63/22)
Rear blades: 32pcs(4pcs4groups)
front blades: 40pcs(4pcs 5groups 4 1)
Driving model :Gear drive
Gearbox: Big Gearbox
Fender: 6pcs
Wheel: 500-8 * 2 sets
Engine Specs:
Engine Model: Normal 195FE
Engine type: Diesel
Bore*stroke[mm(in)]: 95*75
Displacement[ml(cu.in)]: 532CC
Engine speed(rpm): 3600
Compression ratio: 20:1
Rated output power[kW(HP)/rpm]: 9.2kw (13HP)
Fuel: 0# or-10# light diesel oil
Fuel tank volume[L(gal.)]: 5.5L
Fuel consumption rate[g(ml)/kW.h]: =280g/kw.h
Lubrication oil volume[L(gal.)]: 1.65(0.36)
Starting system: Electric Start with 36A battery
Dry weight[kg(ibs.)]: 52kg
Lube brand/Type
Packing: Wooden box
Packing Dimension: 1570*760*1320mm
Net Weight: 272kg
Gross Weight: 340kg
